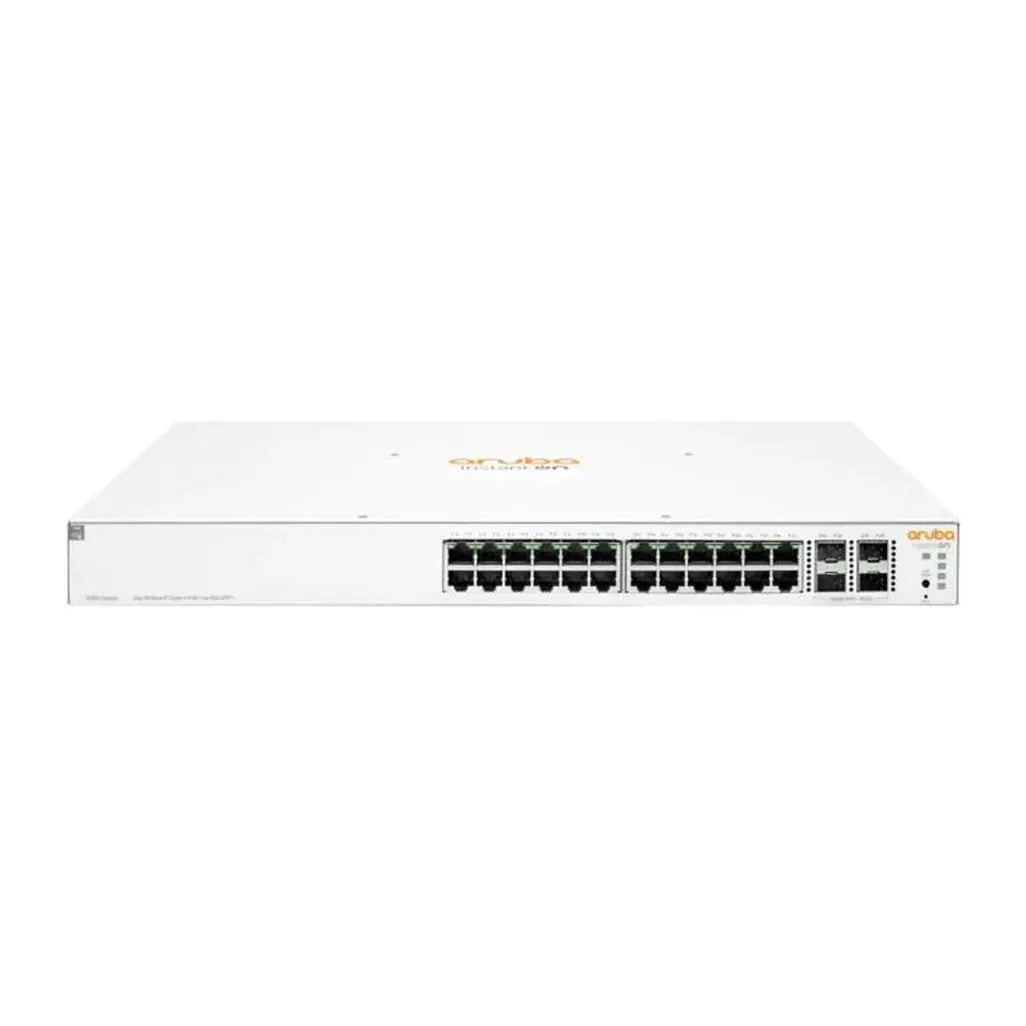

ARUBA ION 1930 24G 4SFP+ POE+ 370W SWITCH

Core

• Product type: Smart Managed Gigabit Switch
• Model: Aruba Instant On 1930 – 24G 4SFP+ PoE+
• Total ports: 28
  • 24 × Gigabit Ethernet (RJ-45)
  • 4 × SFP+ 10GbE uplink ports
• PoE budget: 370W total PoE+ power
• Switching capacity: 128 Gbps
• Forwarding rate: 95.23 Mpps

Performance / Features

• PoE type: IEEE 802.3af / 802.3at (PoE/PoE+)
• Layer: Layer 2+ smart-managed
• VLAN support: 802.1Q VLANs
• MAC address table: 16K entries
• Jumbo frames: Supported (up to 9,216 bytes)
• Quality of Service (QoS): Traffic prioritisation, 8 queues
• Security:
  • Access control lists (ACLs)
  • 802.1X authentication
  • DHCP snooping
  • Port security
• Management options:
  • Aruba Instant On mobile app
  • Cloud web portal
  • Local web GUI
  • SNMP v1/v2c/v3

Network / Connectivity

• Autosensing 10/100/1000 ports: 24
• SFP+ uplink ports: 4 × 10GbE
• PoE+ per-port: Up to 30W per port
• Switching fabric: 128 Gbps non-blocking
• Link aggregation: Supported (LACP)

Power / Consumption

• Max power consumption (full load): ~450W
• PoE power budget: 370W
• Input voltage: 100–240V AC

Mechanical / Physical

• Form factor: Rack-mountable (1U)
• Dimensions (W × D × H): approx. 44 × 24.6 × 4.4 cm
• Weight: ~3.6 kg
• Cooling: Quiet variable-speed fans
• Mounting: Standard 19" rack ears included

Environment

• Operating temperature: 0°C to 40°C
• Humidity: 10–90% non-condensing
• Noise level: Low-noise design (varies with PoE load)
