Core
- Projection system: DLP.
- Native resolution: 1920 × 1080 (Full HD); Maximum supported input up to 3840 × 2160.
- Brightness: 5,500 ANSI lumens (Standard); ~3,420 lm (Eco). (ISO 21118-compliant).
- Contrast ratio: 50,000:1.
Light source & lifetime
- Light source: Nichia 66 W laser diode.
- Rated life: ~20,000 hours (Standard), ~30,000 hours (Eco).
Optics / image
- Throw ratio: 1.12 – 1.47 (example: 2057.4 mm @ 2000 mm).
- Zoom: 1.3× optical zoom; Digital zoom available.
- Image size: 31" – 300" (0.79 m – 7.62 m) diagonal.
- Projection modes: Front / Rear / Front ceiling / Rear ceiling; Projection offset (half-height) ~132%.
Keystone / geometry
- Keystone correction / auto keystone: vertical automatic ±30° and manual horizontal ±30°.
Video timing / refresh
- Vertical sync: 24 – 120 Hz; Horizontal sync: 15 – 135 kHz.
Audio
- Built-in speaker: 1 × 15 W (mono).

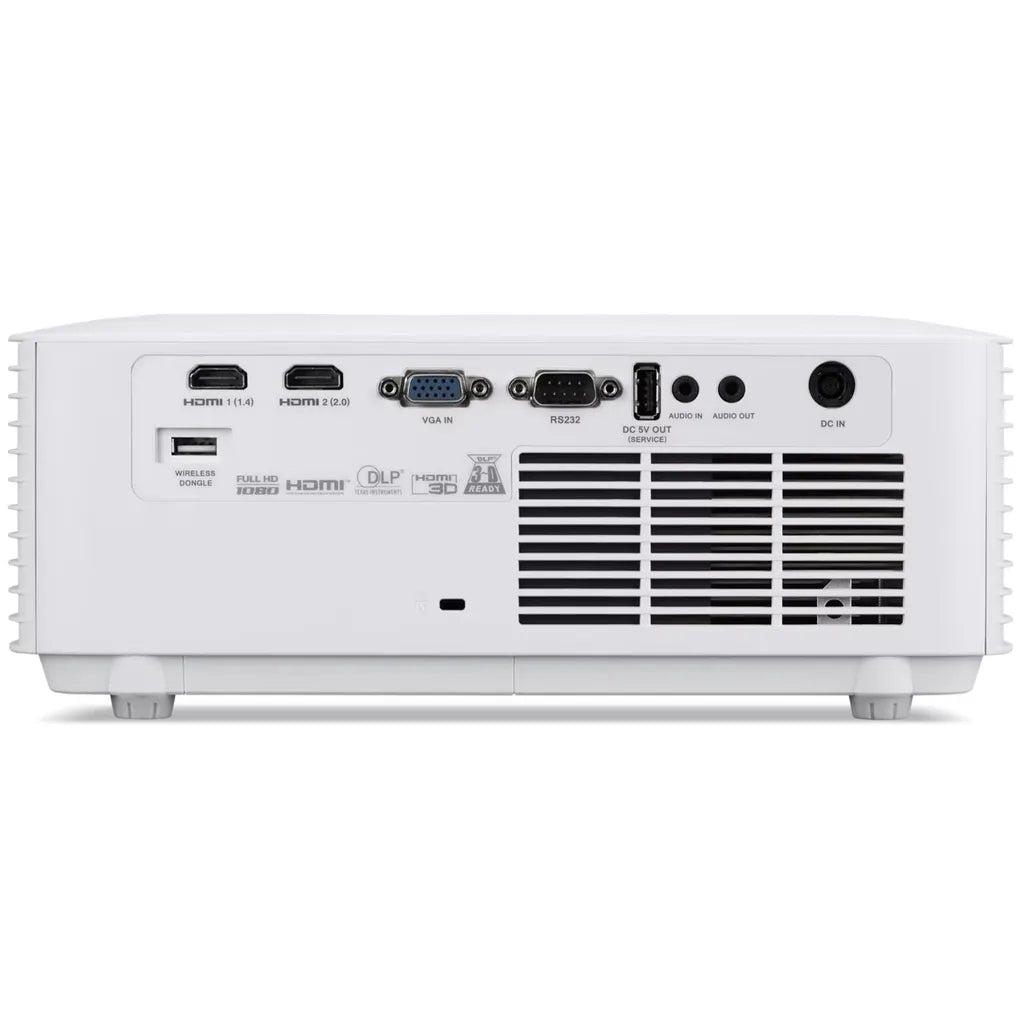

I/O / ports
- HDMI: 2 × HDMI (1 × HDMI 2.0 (HDCP 2.2) + 1 × HDMI 1.4b (HDCP 1.4)).
- VGA (D-Sub): 1 ×
- USB: 2 x USB-A
- Audio in / out (3.5 mm), RS-232, Kensington lock support.
Power / noise / consumption
- Power consumption: ~210 W (Standard), ~160 W (Eco); Standby < 0.5 W.
- Noise level: ~26 dB (Eco).
Mechanical / physical
- Weight: ≈ 2.9 kg (6.4 lb).
- Dimensions (W × D × H): 286 × 216 × 115.5 mm.
- Colour: White. VESA/ceiling-mountable.
