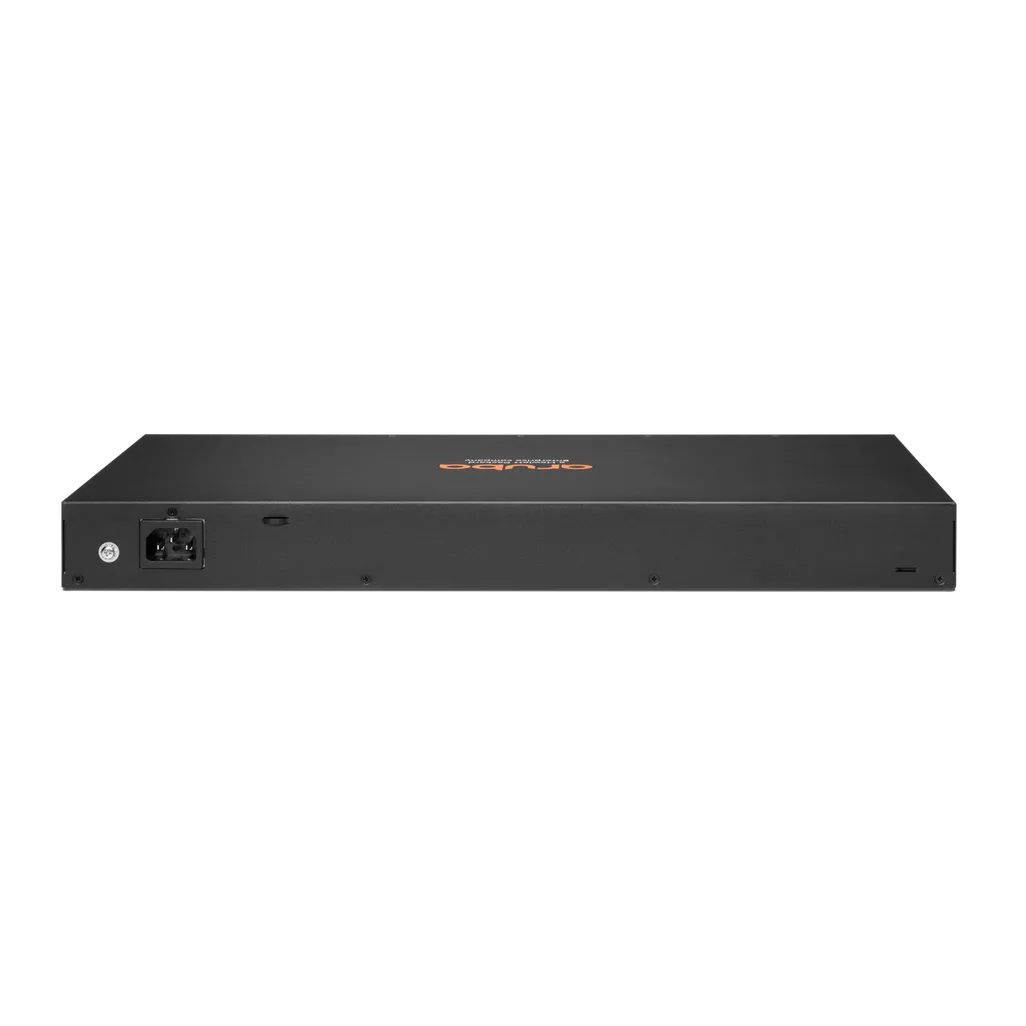

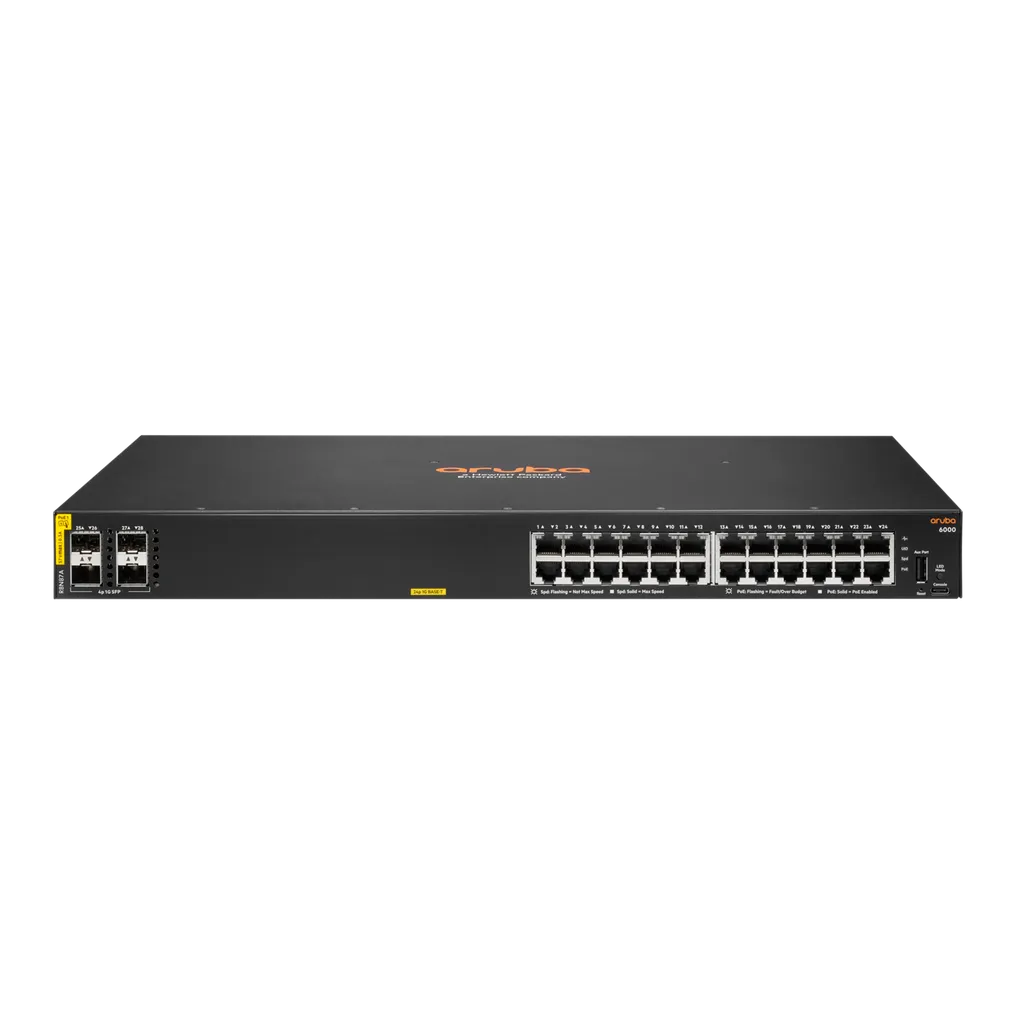

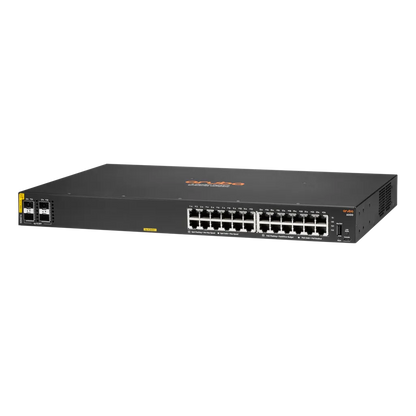

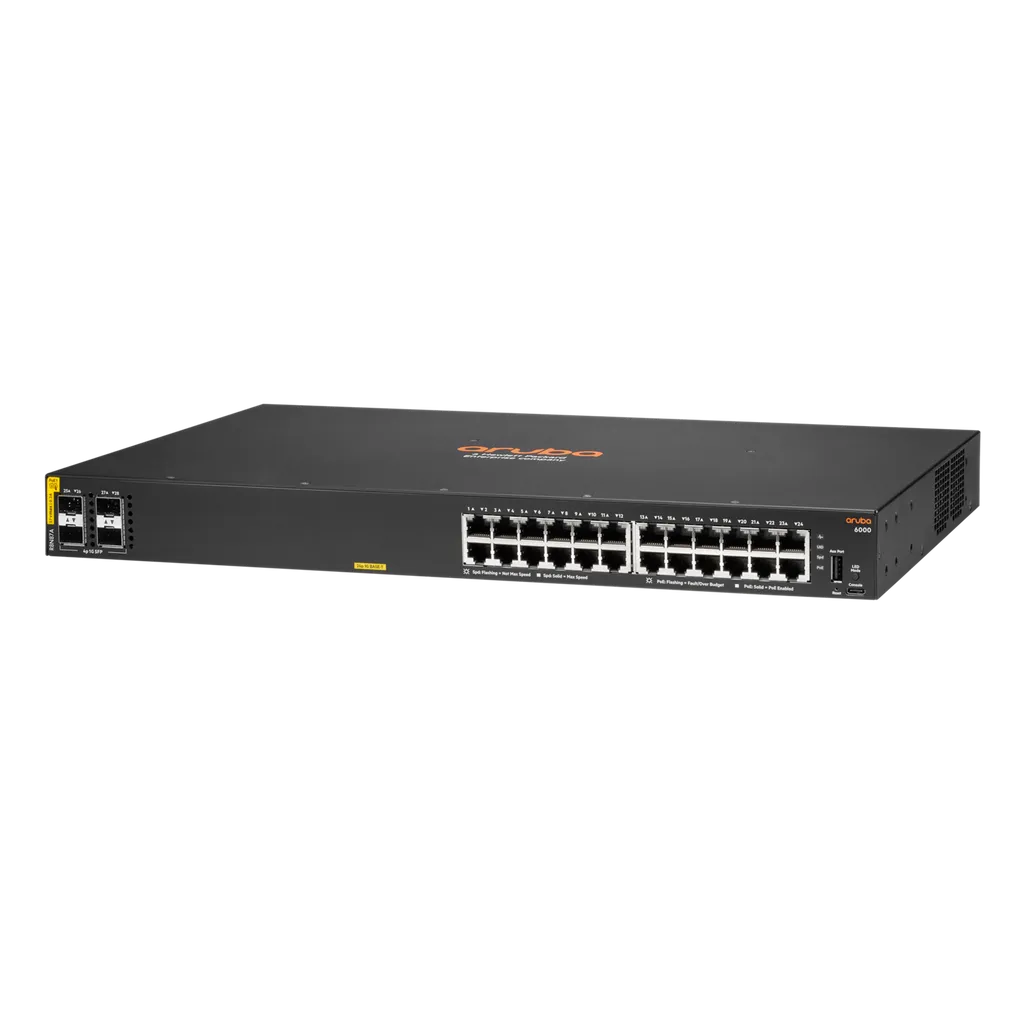

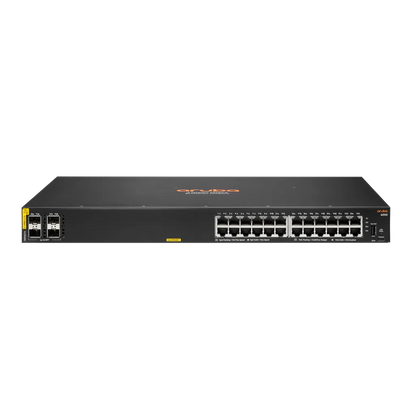

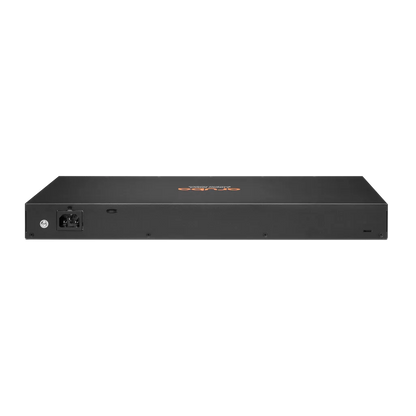

HPE ARUBA 6000 24G 4SFP MANAGED POE SWITCH

Core

• Product type: Fully Managed Layer 2 Switch
• Model: HPE Aruba 6000 – 24G 4SFP PoE
• Total ports: 28
  • 24 × Gigabit Ethernet (RJ-45)
  • 4 × SFP 1GbE uplink ports
• PoE capability: IEEE 802.3af/at (PoE/PoE+)
• Power budget: up to 370W
• Switching capacity: 56 Gbps
• Forwarding rate: 41.7 Mpps

Performance / Features

• Layer: Layer 2 with basic Layer 3 static routing options
• MAC table: 16K entries
• VLANs: 4,096 VLANs (802.1Q)
• Jumbo frame support: Up to 9,216 bytes
• Quality of Service (QoS):
  • 8 egress queues
  • Traffic prioritization
• Security features:
  • 802.1X authentication
  • DHCP snooping
  • Dynamic ARP inspection
  • Port security
  • Access control lists (ACLs)

Management

• Management interfaces:
  • Web GUI
  • CLI (console/SSH)
  • Aruba Central (cloud-managed)
  • SNMP v1/v2c/v3
• Zero-touch provisioning: Supported
• Dual firmware images: Yes
• LLDP / LLDP-MED: Supported

Network / Connectivity

• Autosensing 10/100/1000 ports: 24
• SFP uplinks: 4 × 1GbE SFP
• Link aggregation: LACP supported
• Spanning Tree Protocol: RSTP, MSTP
• IGMP snooping: Supported (multicast optimisation)

Power / Consumption

• Input voltage: 100–240V AC
• PoE budget: Typically 370W
• Max power consumption: Up to ~450W at full PoE load

Mechanical / Physical

• Form factor: 1U rack-mountable
• Dimensions: approx. 44 × 28 × 4.4 cm
• Weight: ~3.5–4.0 kg
• Cooling: Quiet, variable-speed fans
• Mounting: Rack-mount kit included

Environment

• Operating temperature: 0°C to 45°C
• Humidity: 10–90% non-condensing
• Acoustic noise: Low (increases with PoE load)
